What Is a Modular Conveyor Belt and How Does It Work?

A Modular Conveyor Belt moves products through a production line using linked plastic modules joined by hinge rods. Unlike a continuous belt, its surface is assembled from replaceable sections. The belt travels around sprockets, which engage its underside and drive it forward. This design suits food processing, packaging, and other operations that need durable, washable conveying surfaces.

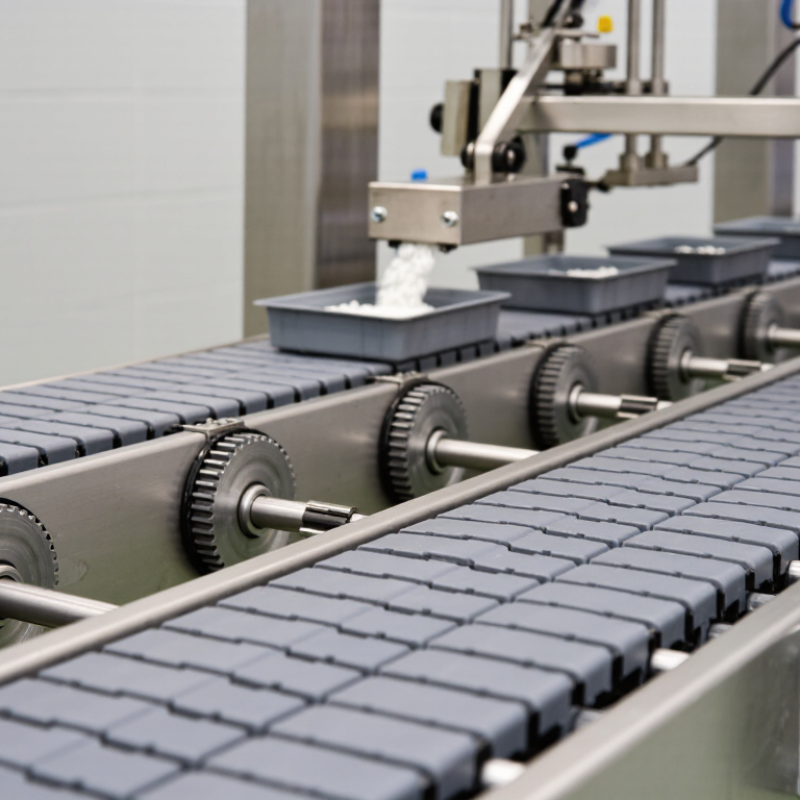

Picture a row of molded links carrying trays past a filling station. If one section cracks, technicians can often replace that section instead of changing the entire belt. That can reduce repair time. But the system still needs careful design: sprocket alignment, belt tension, product weight, and cleaning routines all affect performance. Small installation errors matter.

A Modular Conveyor Belt is not automatically the best choice for every line. Product shape, operating temperature, moisture, and required speed should guide selection. A useful introduction should explain how the belt is built, how its drive works, and what maintenance it needs. One accuracy note: no source article or verifiable expert quotation was provided, so attributing a quotation to a named specialist would risk inventing a claim. Reliable technical guidance should be checked against manufacturer specifications and qualified conveyor professionals.

What Is a Modular Conveyor Belt and How Does It Work?
Table of Contents [Hide]
1 What a Modular Conveyor Belt Is
2 Key Components and How the Belt Is Assembled
3 How the Belt Moves and Transfers Materials
4 Common Belt Materials and Module Designs
5 Where Modular Conveyor Belts Are Used

What a Modular Conveyor Belt Is

A modular conveyor belt is a moving surface assembled from many small, interlocking plastic pieces. These pieces, often called modules, connect with hinge rods to form a continuous belt. Unlike a single sheet of rubber, the belt can be built in sections and replaced one section at a time. That can make routine repairs simpler.

The modules travel around sprockets mounted on a drive shaft. As the shaft turns, the sprockets engage the belt’s underside and pull it forward. A support frame holds the belt level, while guides help keep it aligned. The open spaces between modules allow water and small debris to pass through. This design is useful in food processing, packaging, and other settings where products need steady movement and equipment needs regular cleaning. Some belts have a flat surface; others use raised ribs or small flights to control products on slopes. Details matter.

The material, module shape, belt width, and operating temperature all affect performance. A belt that works well with dry cartons may not suit warm, oily items. Even a small mismatch can cause tracking problems or wear at the edges. Modular construction is flexible, but it is not automatically maintenance-free. Operators still need to inspect the sprockets, clean trapped debris, and check for loose or damaged modules. I would not choose a belt by appearance alone; actual product weight and washdown conditions can change what works in practice.

Key Components and How the Belt Is Assembled

A modular conveyor belt is built from small, interlocking plastic segments rather than one continuous sheet. Each segment has molded hinges along its edges. Short rods pass through these hinges, linking neighboring modules into a flexible belt. The modules form the conveying surface. Their shape and spacing affect drainage, grip, and the size of objects they can carry.

Other parts guide and drive the belt. Sprockets engage openings beneath the modules and transfer motion from a drive shaft. A return shaft supports the belt at the opposite end, while the frame holds both shafts in alignment.

Low-friction wear strips support the belt along its path. Small details matter. Misaligned sprockets can cause uneven tracking, and a poorly supported return run may sag.

Assembly typically begins by checking the frame, shafts, and sprocket spacing against the belt width. Modules are joined row by row, with hinge openings aligned before each connecting rod is inserted. It should move freely. The completed belt is looped around the sprockets, then checked for correct engagement and suitable tension. Too tight can increase wear; too loose can skip teeth. The right setting varies with belt design, load, and operating conditions, so a quick visual check alone may not be enough.

How the Belt Moves and Transfers Materials

A modular conveyor belt is made from linked plastic or metal modules that form a continuous carrying surface. A drive motor turns a sprocket, whose teeth engage openings beneath the belt. This pulls the belt forward along a supporting frame. The modules bend around end sprockets, allowing the belt to travel from the return path back to the loading side. The motion is steady, but not perfectly silent.

Materials rest on the belt as it moves between work areas. Side guides can help keep loose items from slipping off, while cleats or raised surfaces provide extra grip on inclined sections. At the discharge end, the belt curves around a sprocket, and gravity or a transfer plate helps items move onto the next surface. Small gaps between modules allow water and debris to drain, which is useful in washdown settings. Very small parts, however, may catch in those gaps.

A properly matched drive speed matters. If the belt moves too quickly, items can shift or collide at a transfer point; too slowly, and the line may not meet the required flow. Operators should check for worn modules, loose sprockets, and material buildup, especially near the belt’s underside. Alignment can drift over time. Even a sound design may need adjustment when product size, load, or operating conditions change.

Common Belt Materials and Module Designs

Modular conveyor belts use linked plastic or metal sections that form a continuous moving surface. The material affects grip, cleanability, temperature tolerance, and wear. Polypropylene is lightweight and resists many common cleaning chemicals, making it useful in food-processing areas. Polyethylene handles impacts well and can perform in colder conditions. Acetal offers greater stiffness and dimensional stability, though it may not suit every chemical environment. Stainless steel modules withstand heat and heavy loads, but they add weight and can increase system cost. Details matter.

Module designs vary with the product and the path it travels. Open-grid modules allow water and debris to drain through, which helps around washdown stations. Flat-top modules provide steady support for cartons and small packages. Raised-rib or textured surfaces can improve traction on inclines, but may be harder to clean thoroughly. Curved modules let a belt turn around corners without a separate transfer point. Hinged links connect each module, so damaged sections can often be replaced without discarding the full belt. In practice, small gaps between modules can still catch delicate items. That trade-off deserves a real product test, not just a diagram review. A belt that looks suitable on paper may behave differently once loaded, cleaned, and run at production speed.

What Is a Modular Conveyor Belt and How Does It Work?

Typical continuous operating temperature ranges for common modular belt materials

How it works: Interlocking plastic modules connect with hinge rods to form a flexible belt that runs on sprockets. Module designs can be flat, perforated, or open-grid to suit different products and drainage needs. Temperature ranges are approximate; exact limits vary by material grade and operating conditions.

Where Modular Conveyor Belts Are Used

What Is a Modular Conveyor Belt and How Does It Work?

Where Modular Conveyor Belts Are Used

Modular conveyor belts are common in food processing, beverage packaging, pharmaceuticals, and distribution centers. Their interlocking plastic modules form a flexible belt that can travel straight or around curves. In a bakery, for example, trays of warm rolls may move from cooling racks to inspection stations. In a packaging plant, containers can pass through filling, labeling, and case-packing areas. The belt’s open construction can help with drainage and cleaning, while individual damaged modules can be replaced without changing the entire belt. Suitability still depends on product temperature, belt material, load, and cleaning method.

Distribution operations also use conveyors to move parcels between sorting and packing points. MHI’s 2024 Annual Industry Report, produced with Deloitte, found that 55% of surveyed supply-chain leaders planned to increase technology investment over the next two years. That figure covers supply-chain technology broadly, not conveyor belts alone. Still, it reflects pressure to improve material flow, where conveyors may support steady movement between workstations. A belt can also create bottlenecks if its speed, width, or layout does not match the surrounding equipment. That part is easy to underestimate.

Tips: Match the belt material to the product and washdown routine. Check transfer points for small items that could slip between modules. Test the proposed layout with real loads; a neat drawing is not proof of smooth operation.
